1) Brightness Selection
Having the correct brightness is important as it determines the clarity. A suitable brightness will enhance the audiences visual experience. Over brightness causes visual discomforts and being too dim will restrict the details the display wants to portray.
For Indoor Display Screen setting, having 600 to 1600 nits will be optimal. And if the setup will be near direct sunlight, 1600 to 2600 nits will be ideal.
For Outdoor Display Screen setting , having 2400 to 5000 nits will be sufficient to overcome the sunlight.
2) The Pixel Pitch
The Higher the Pixel Pitch , the lesser density between LED Chip formation within the LED Display screen , the screen will therefore have lower resolution.
The Lower the Pixel Pitch , the higher density between LED Chip formation within the LED Display screen , the screen will therefore have higher resolution.
For Indoor Display Screen setting with close up audience , lower the pixel pitch the better. Choices from 0.9mm , 1.2mm , 1.5mm , 1.8mm , 2.5mm.
As for Outdoor Display Screen setting, we recommend the choices from 1.6mm , 2.5mm , 3mm , 5mm, 7mm.
3) The Viewing Distance
The Pixel pitch will affects the optimum viewing distance . The recommended pixel pitch can be estimated with the following formula:
Pixel pitch (mm) / (0.3 to 0.8) = Optimal viewing distance (mm)
|
Pixel Pitch (mm) |
1.2mm |
2.5mm |
5mm |
7mm |
|
Min. Viewing distance (meters) |
1.5m |
3.1m |
6.25m |
8.75m |

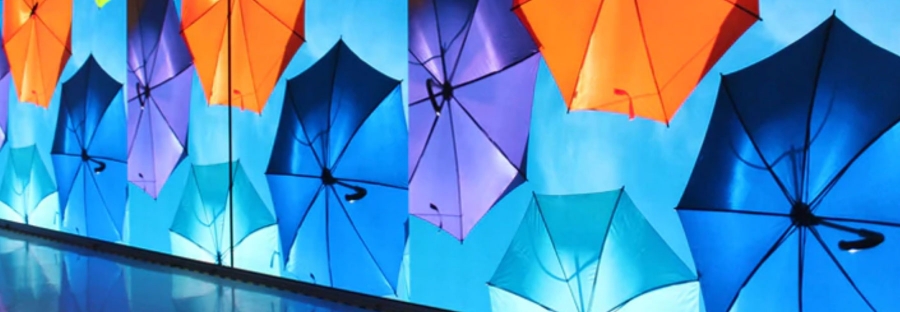

4) Transparent Screen ? Or Curve Screen ?
Under Gowell’s range of LED Displays , each Panels can be used for different kind of settings and application. Curve screen serves the creative aspect of the surrounding and whereas transparent screen has ability to integrate display content with the physical products in the area.
As for formal presentations or other important viewing applications, a solid fix panel will be more ideal as it will disallow ambient lights or distractions bleed through onto the content.
5) The Resolution
Higher Resolution doesn’t mean it is better. To determine this , the content that is intended to be displayed is important. If the content is simple, not much of a colour variation , a low resolution pitch with be sufficient. When the content consist of photos or logos, higher resolution is recommended.
Therefore, Gowell is here to assist in choosing the suitable pixel pitch, size, and brightness that will be the most cost effective solution to meet your business needs.
